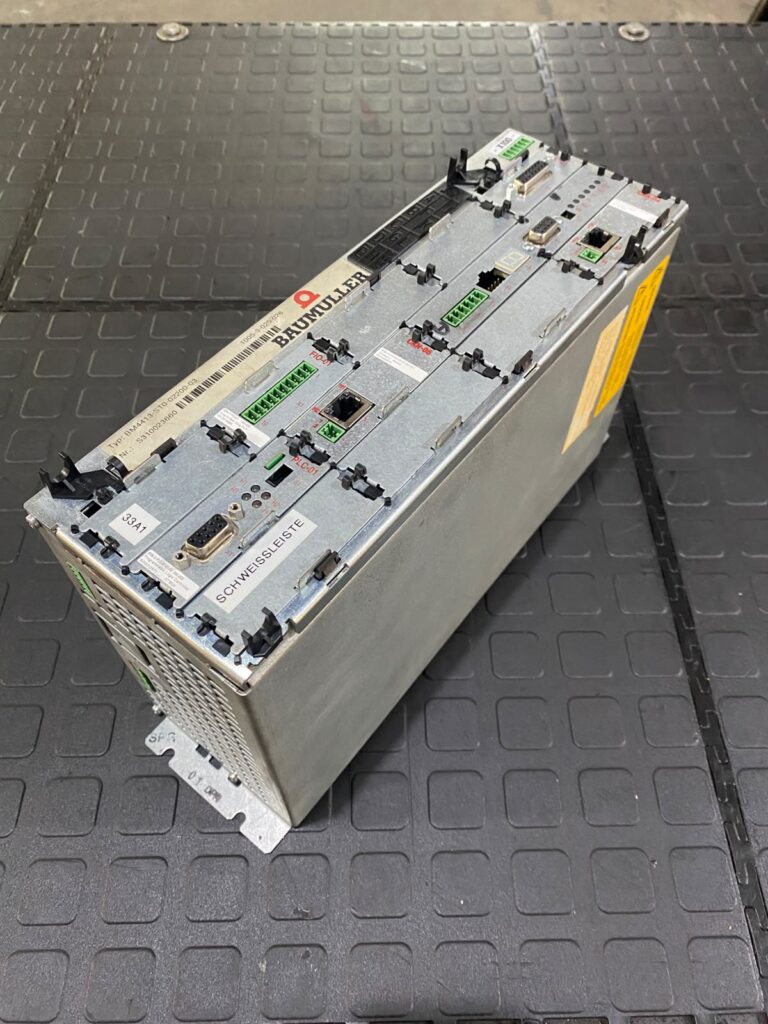

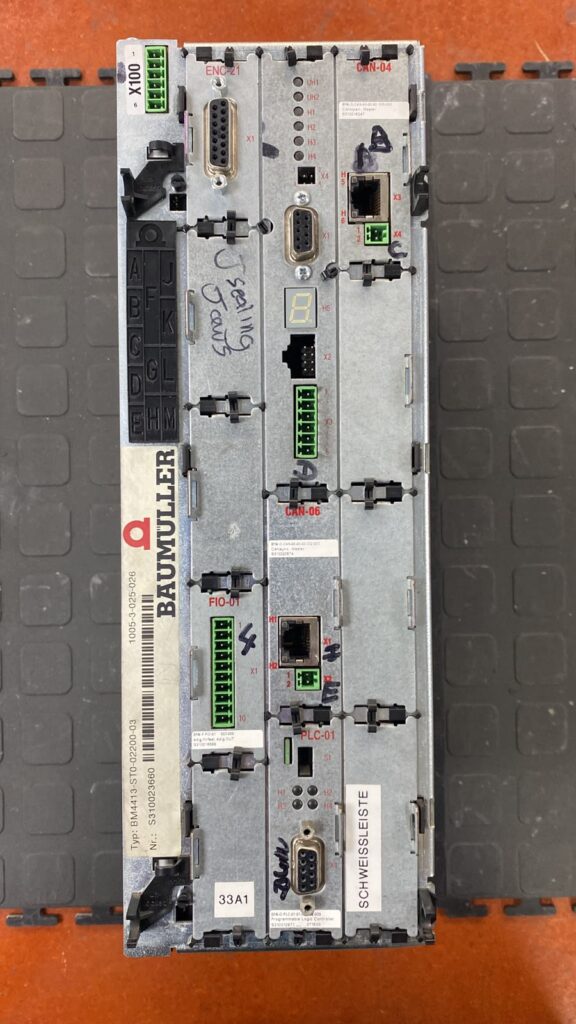

A Baumüller B Maxx 4000 industrial drive from a plastic packaging manufacturing facility was received after developing encoder communication faults that prevented reliable operation. Motion Tronic’s inspection identified multiple damaged interface boards within the drive cassette, affecting communication between the main controller, encoder card, and I/O cards. Through targeted repairs and comprehensive testing, the drive was successfully restored to full working conditions, allowing the customer to avoid the significant cost of replacement.
The Challenge

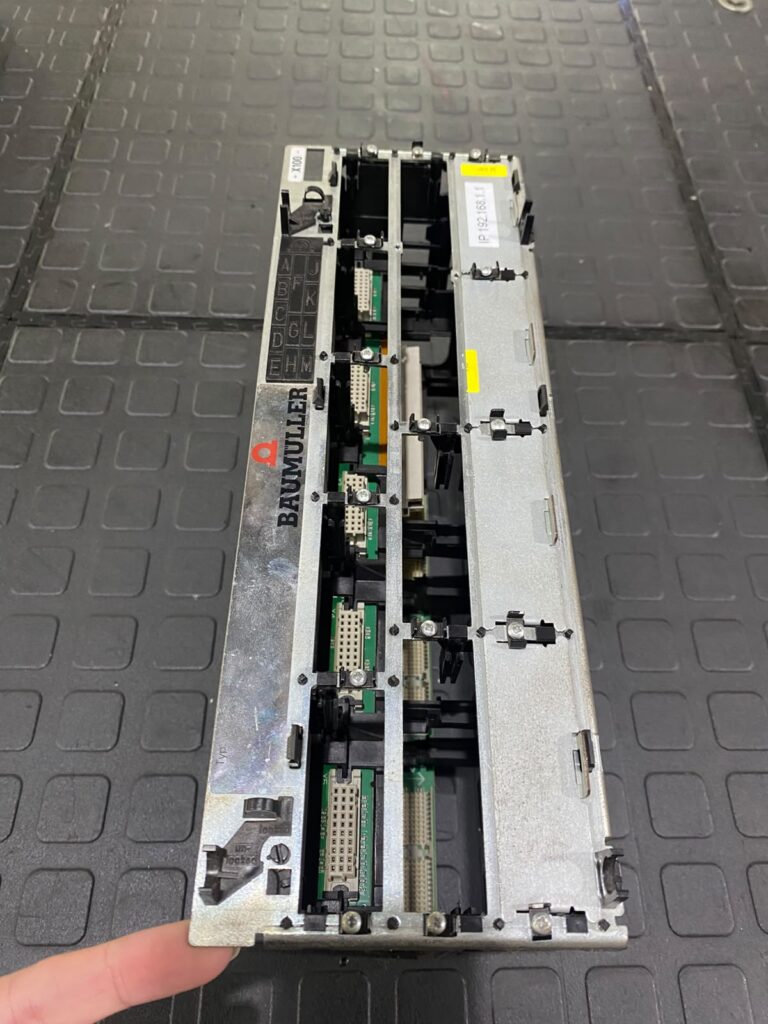

The customer reported persistent encoder errors that disrupted machine operation. During the initial assessment, our technicians found that several cassette interface boards had been damaged, preventing the main controller from communicating correctly with the encoder and other I/O cards. Without reliable feedback and communication, the drive could not operate safely or accurately.
The Repair Process

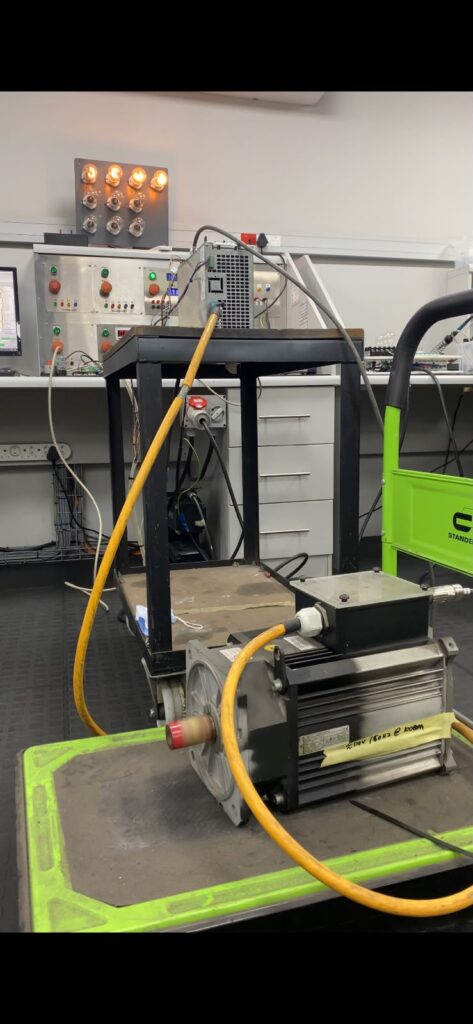

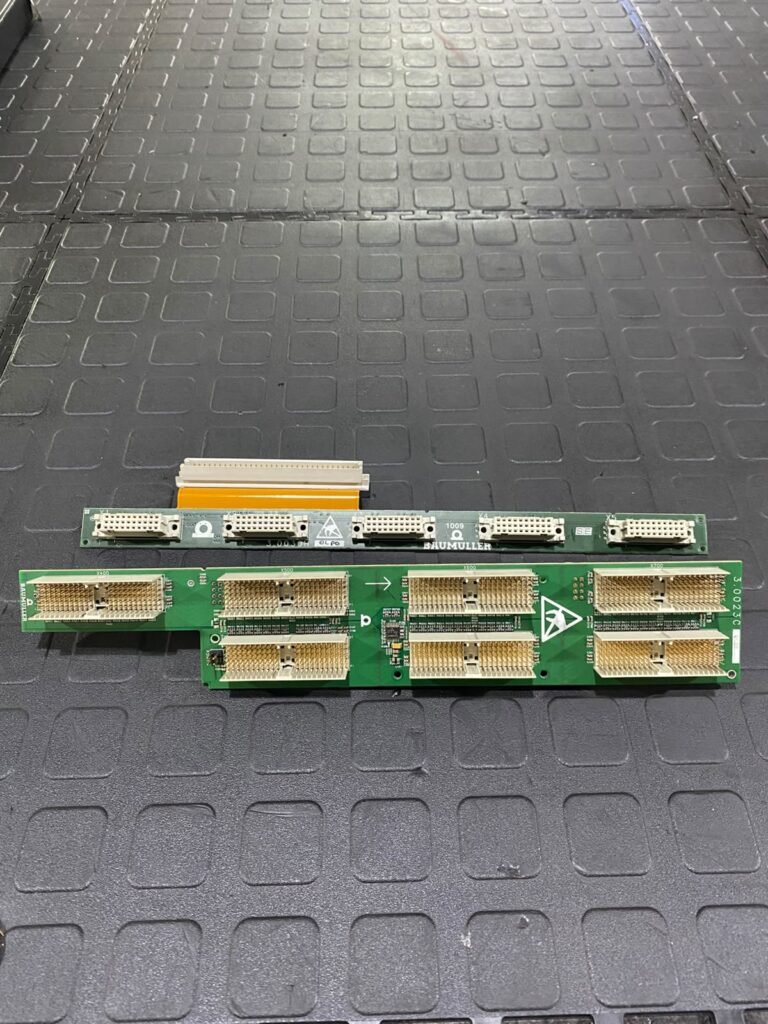

Motion Tronic replaced the damaged cassette interface cards and carried out a preventative service on the main controller board to ensure dependable long-term performance. Once repairs were completed, the drive underwent comprehensive load testing with a motor to verify correct encoder feedback, communication, and operational stability.
The repaired drive successfully met internal testing standards, confirming that all critical functions had been restored.
The Result
The repaired Baumüller drive was returned to the customer in fully operational condition, eliminating the need for a costly replacement unit. The successful repair improved system reliability, restored production, and minimized downtime for the customer’s manufacturing process.
Why Preventative Maintenance Matters
Industrial drives rely on reliable communication between control electronics, encoder feedback systems, and I/O circuitry. Regular preventative maintenance can identify developing faults before they lead to communication failures, unexpected production stoppages, or more extensive electronic damage.
Key Technical Lessons Learned
- Encoder communication faults are often linked to damaged interfaces or control electronics rather than the encoder itself.
- Routine preventative maintenance helps detect deteriorating electronic components before they result in costly failures.
- Professional diagnosis and repair of industrial drives can significantly extend equipment life while reducing downtime and replacement costs.
